Punch position

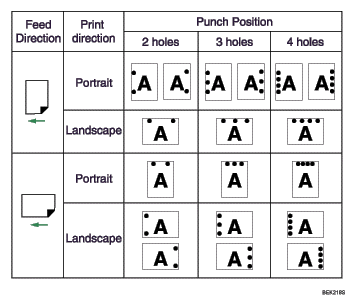

The specified punch position varies depending on paper feed and print data orientation. The following table shows punch positions:

Punch Position

Illustration of punch position

Holes Type (Finisher SR3030)

Type

Paper Size

2 holes

A3image, A4imageimage, A5imageimage, A6image, B4 JISimage, B5 JISimageimage, B6 JIS image, 11" × 17"image, 81/2" × 14" (Legal)image, 81/2 " × 13" (Foolscap)image, 12" × 18"image, 81/2" × 11" (Letter)imageimage, 81/4" × 13" (Folio)image, 8" × 13" (F/GL)image, 71/4" × 101/2" (Executive)imageimage, 51/2" × 81/2" (Half Letter)image

3 holes

A3image, A4image, B4 JISimage, B5 JISimage, 12" × 18"image, 11" × 17"image, 81/2" × 11" (Letter)image, 71/4" × 101/2" (Executive)image

EU 4 holes

A3image, A4image, B4 JISimage, B5 JISimage, 12" × 18"image, 11" × 17"image, 81/2" × 11" (Letter)image, 71/4" × 101/2" (Executive)image

Northern EU 4 holes

A3image, A4imageimage, A5imageimage, B4 JISimage, B5 JISimageimage, B6 JISimage, 12" × 18"image, 11" × 17"image, 81/2" × 14" (Legal)image, 81/2" × 13" (Foolscap)image, 81/2" × 11" (Letter)imageimage, 81/4" × 13" (Folio)image, 8" × 13" (F/GL)image, 71/4" × 101/2" (Executive)imageimage, 51/2" × 81/2" (Half Letter)image

Note

  • Punch positions will vary slightly from page to page as holes are punched into each sheet individually.

  • For printing methods, see the printer driver Help.
